Temporary  Waiver To Use Pactor IV on Amateur Band's

The FCC’s Mobility Division has verbally granted ARRL’s request for emergency waiver of the symbol rate limit for the sole purpose of
handling traffic related to Hurricane Ida this weekend. This verbalapproval is effective immediately, and continues until the Division
issues a written decision, which is expected early next week. Headquarters staff has been notified and I believe that they are
readying the appropriate public notifications.

ARRL’s request is for a 60-day waiver so that it can be employed to handle traffic related to any additional hurricanes that come our way
this season after Hurricane Ida.  Due to recent developments in digital protocols that have found widespread usage in the amateur community both
here and abroad, the waiver request is not limited to PACTOR IV.  Any similar protocol, such as VARA, may be used for this purpose so long as
it meets the same requirements that have applied in the waivers granted in earlier years:   protocols must be publicly documented, use no more
bandwidth than the currently permissible slower protocols, and be used solely for communications related to the subject disasters (hurricanes
in this instance).

The written request is being finalized at headquarters and will be forwarded as soon as filed at the FCC.  Please direct any questions
about the waiver to me.

--------------------------------------------------------------------
ARRL Southeastern Division
Director: Mickey V Baker, N4MB
n4mb@arrl.org

--------------------------------------------------------------------

08/28/2021



Simple, easy-to-use E-mail & Weather FAX on your boat using your marine SSB or Ham Radio,
& a Pactor-4 Modem.



Authorized
Dealer


(Past Icom
Dealer of the Year)





Usually Ships Same Day


DockSide Radio is committed to making sure your SSB and e-mail system is working properly, and that you understand how to setup and use your SSB & modem.





Icom M803







Color Display


Integrated GPS


 Class-E DSC



10-levels of  Noise Reduction + pulse noise blanker





Customization
* Price includes DockSide Radio's Customized Settings & Frequencies

This is important to you because:

Out-of-the-box M803 Default:

  • Speech compression is DISABLED.

  • From a cruising sailor's standpoint, many of the factory-loaded frequencies in the  User Channel Group are NOT USEFUL TO CRUISERS.

  • Only 124 of 160 User Group Channels contain station frequency date. 36 channels are empty

DSR's reprogrammed M803:

  • Speech Compression is ENABLED.

  • 154 User Group Channels are programmed with CRUISER-USEFUL station frequency data.

  • Configuration/Settings set to work properly with Pactor Modem.

 (By definition , making these changes  means we functionally check-out your radio before shipping).

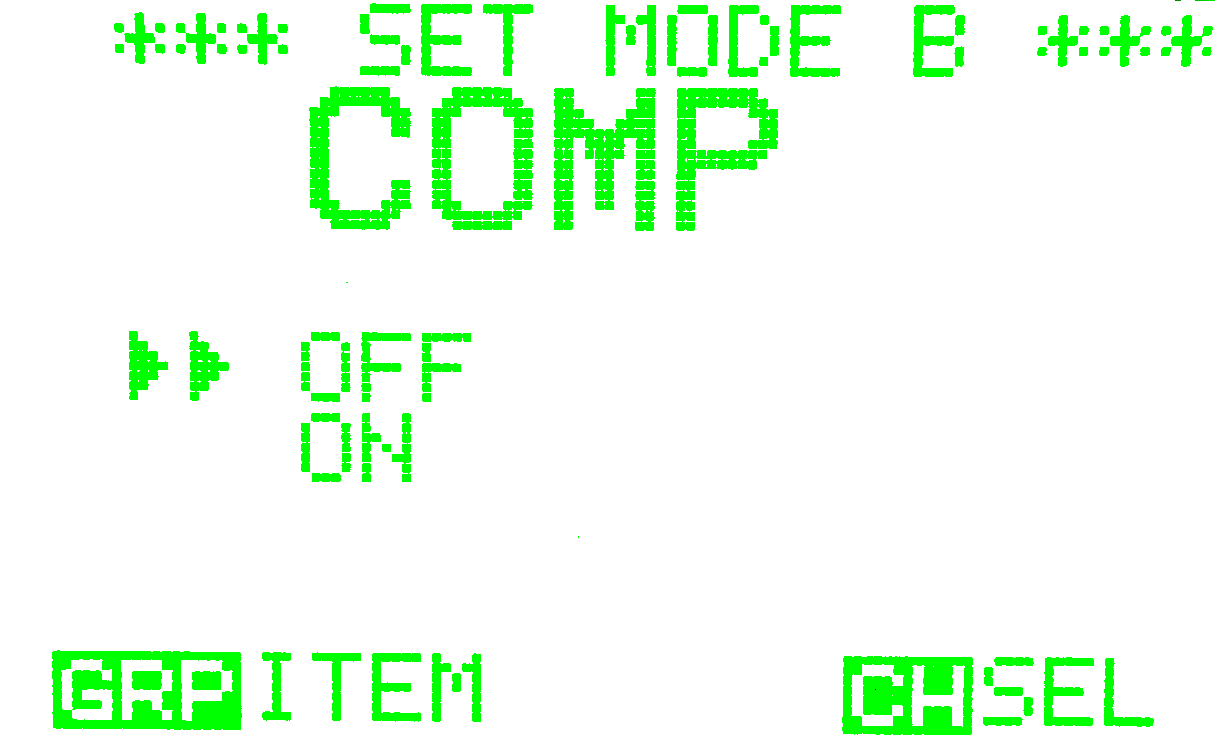

Speech Compression enabled - Increases your  "talk power".  Makes your signal louder & clearer.

DSR's Customized User  Group  Database - Up-to-date  SSB & HAM frequencies & NETS .

Amateur/Ham & VFO Modes enabled - Tunes like a regular radio.

$2499.99



Enabling the Icom M803 Amateur  Mode*

* Amateur Radio General Class license or higher required for transmitting on Ham Bands.

1 - Turn OFF Radio
2 -
Simultaneously press and hold the 2, RX/TX, and MENU buttons, while powering ON  the M803
3 - Continue depressing the
2, RX/TX, and MENU  buttons until the radio show's its normal operating screen
4 -
When  complete, AMATEUR will appear on the upper left portion of the M803's display

Before Enabling

After Enabling



The Problem:

There's no practical way of plugging earphones into the M803. Earphones turn-off noisy speaker, letting   off-duty crew rest/sleep.

's Solution:  - Icom SP24-03 speaker

  •  - Headphone - Works with Apple, Samsung,  Google, Huawei, etc., earbuds, or other  (4Ω-8Ω) earphones.

  •  - Better sound quality than M803 's built-in  speaker.

Let crewmembers Sleep
Plug your headphone into the M803

DockSide Radio restores the earphone /  headphone connectivity to the Icom M803 with the customized SP-24-03 speaker with 3.5mm earphone  jack and  speaker / headphone switch.

Icom Marinized Quality

    Customization



SP24-03
Earbud jack + Speaker

$84.95



Battery Voltage Booster

Ensure your M803, M802, Ham Radio, or other downstream electronics, get the required
13.8 VDC to function properly.

Mounts next to your SSB main unit. The Battery Voltage Booster compensates for both the normal voltage drop  throughout your battery's discharge cycle, and wiring losses.

Battery Voltage Booster
$199.99



Key Downloads

Pactor-4 DR-7800
$1849*
*Modem only
Radio-specific cables & genuine Type-31 FairRite ferrites available separately, or in kits.

Pactor-4 e-mail Weather Fax Modem

Physical drop-in replacement for PTC-IIusb or PTC-IIPro.  Switching to the P4 Dragon 7800 shouldn't require any woodworking modification to your teak. Simply remove the old modem and drop in the DR7800....and yes, it uses the same/existing cables used by the PTC-IIusb and PTC-IIPro.

Click here for Product Datasheet

6/01/18 Current Firmware:
P4 2.30.97
P-III 4.1r

Pactor Modem Firmware Update
(always free)

Bring your older modem current:

Click here. Download/install SCS-Firmware Update utility.

Note: Internet connection required. Run update BEFORE leaving the dock.

Pactor-4 Dragon &
 PTC-III / IIusb Modem Driver Installer

  1. With the modem disconnected from your computer, click here to go the SCS  downloads page.

  2. Download SCS USB Driver Installer

  3. Double-click on the installer to RUN the driver installation.

  4. Connect the modem to your computer.

  5. Power the modem ON. Windows plug-n-play will connect the modem to the driver.

DSR's Custom
ICOM SSB
Channel Guide/Listings

M803
Page - 1 & 2

____ . ____


M802-11
(Effective 12-2013)
Page-1 - Page-2


____ . ____


M802-01
(Model Discontinued 11-2013)
Page-1 - Page-2

Click here to download Airmail v3.5.054



This release contains changes/updates important to you, including:

  1. Updated GRIB Viewer (ViewFAX).

  2. Updated list of SM station frequencies.

  3. Updated SM Server IP addresses

  4. "Dedicated Route" function for blocking unwanted incoming messages.

Be sure to read Jim's release notes after installing




Pactor-4 DR-7400
$1498*

*Modem only
Radio-specific cables & genuine Type-31 FairRite ferrites available separately, or in kits.

Pactor-4 DR-7400 Modem

Click here for Product Datasheet

DR-7400 Benefits  vs DR-7800

$351 less than DT-7800
50+% smaller footprint: 5"w x 13/
4"H x 51/2"D
quality: same great P4 reliability & performance

*Modem only
 Radio-specific cables & FairRites available separately, or in kits.

Read what our customers say about DockSide Radio's kits and service





FCC Radio Licenses
&
MMSI Number Management


 24-48 hour turnaround of FCC Marine & Aeronautical Radio License applications.

Internationally recognized MMSI Number for AIS transponder

Free-up your time by having DockSide Radio electronically file for your aeronautical/marine radio licenses.

Click here for more info and one-page License Worksheet.

- The Sailors' Quick-Start Guide -
to
 SailMail, AirMail, & Winlink

 Airmail Ver 3.5..xxx
for
Windows 10, Windows 8/8.1, windows 7 - Windows Vista
 Windows XP, Windows 2000
32  & 64-bit versions

Available in Europe from the creators of Pactor:

SCS Spezielle Communications Systeme GmbH & Co. KGRoentgenstr. 36
D-63454 Hanau, GERMANY
e-Mail: martin.clas@scs-ptc.com




If you're new to Sailmail, this is the guide for you. Since it's first publishing in 2002, The Sailors Quick-Start Guide to Sailmail/Airmail/Winlink2000 is the only  guide that walks you step-by-step through the process of downloading, installing, and configuring Airmail. Loaded with actual computer screen images, the Quick-Start Guide quickly  gets you sending/receiving e-mail, and receiving WeatherFAX.

To learn more look at the Table of Contents by clicking here.

Covers Airmail Versions 3.5xx - 3.4.xx
for 32 & 64-bit
 Windows 10 - 8/8.1 - 7 - Vista - XP - 2000

Airmail Sailmail Instruction Manual

$25.95* + $4.00
US/ Postage Only

Also available from:  DownWind Marine


 European customers can order their copy online from SCS - (the Pactor modem manufacturer), in Germany.

  New for 2021

- The Sailors' Quick-Start Guide -
to
 SSB Installation & Operation
 Eighth Edition

Includes M803 Amateur and VFO Modes

Learn in non-technical terms how to install & operate your Icom M803, M802, M710, M700Pro single sideband radio.

 If you're new to SSB Radio, if you're doing your own installation, if you want to understand your SSB system, the $19.95 Quick-Start Guide to SSB Installation and Operation is for you.

No fluff - Just Useful Stuff

Practical, understandable, actionable, information based on professional training, education, and experience.
To learn more take a look at the Table of Contents by clicking here.

Icom SSB Radio Installation & Operation



$19.95* + $3.00
US Postage
Only


Also available from:  DownWind Marine






 Warranty & Returns Policy



Cruising Radio Nets:
Click here for the latest listing of cruising net times & frequencies.
Weather FAX:
Click here to download the latest Atlantic, Caribbean, Gulf of Mexico, & Pacific WeatherFAX maps.
SSB Simplex Channels & Frequencies:
Click here for a complete list of marine SSB simplex channels and frequencies.
